A hydraulic pump is the power component of a hydraulic system, which is driven by an engine or electric motor to suck in oil from the hydraulic oil tank, form pressure oil, and discharge it to the actuator. Hydraulic pumps are divided into gear pumps, plunger pumps, vane pumps, and screw pumps according to their structure. A hydraulic component that provides pressurized liquid for hydraulic transmission, which is a type of pump. Made of aluminum alloy, with high strength, corrosion resistance, light weight, suitable for operation in various environments.

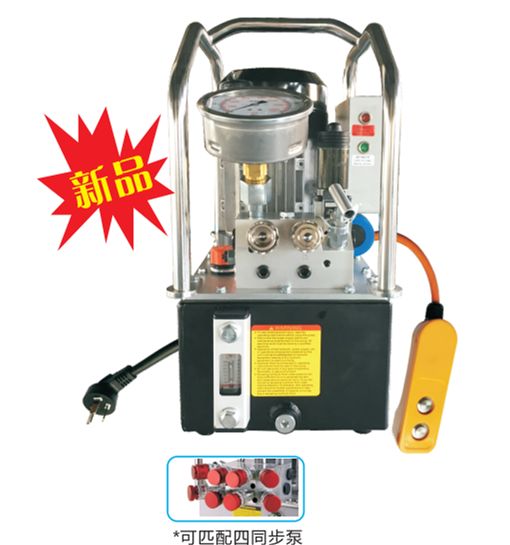

GXA-8.5 Hydraulic Torque Wrench Special Pump

1. Product Features

*Compact design with three levels of flow

*Suitable for synchronous operation of two wrenches (optional with four synchronous working pumps)

*Stainless steel handle protection frame.

*Precision pressure gauge.

*Smooth adjustment of pressure between 40-700Bar.

*Configured for 24-hour continuous operation.

*The minimum temperature is 70 degrees.

*Air cooled oil temperature cooling system.

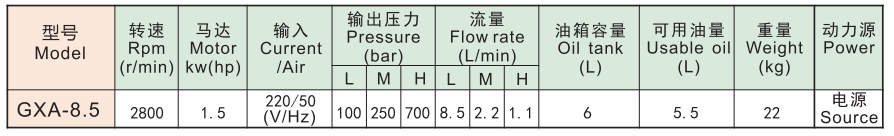

2. Table parameters

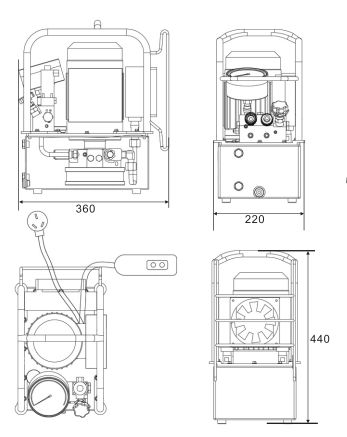

3. Drawing parameters

*The lightweight design of the body makes it easy to carry, with a weight of only 22KG.
