Split hydraulic puller, also known as split synchronous hydraulic flange separator, is equipped with a dedicated pressure gauge, allowing users to accurately control pressure and prevent overpressure use, ensuring the safety of the operator. It is lightweight and durable, making it the best choice for professional and industrial users.

MPR split hydraulic puller

1. Product Features

*Forged with high-strength alloy steel.

*The independent hydraulic pump and puller body are equipped with safety valves and red warning lines.

*Hydraulic cylinder hard chrome treatment enhances linear force.

*The central nut spring load is easy to use.

*The surface of the 2/3 claw top collar is dyed black, durable and rust resistant.

*Heat treated alloy steel forged connecting bolts and claw surfaces are dyed black to prevent rust and increase service life.

*Two stage itinerary design, with the first stage connected by the main body for faster travel; The second stroke is output by hydraulic pressure.

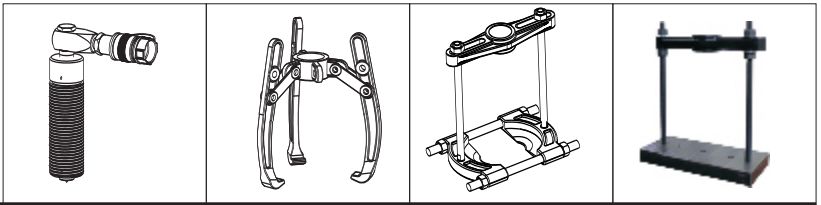

*The extension rod design has a wide range of applications.

*The material is permanently guaranteed.

*The rated load of the claw is more than 120%.

*Each model comes with a protective cover and storage kit.

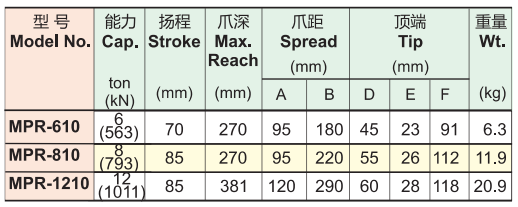

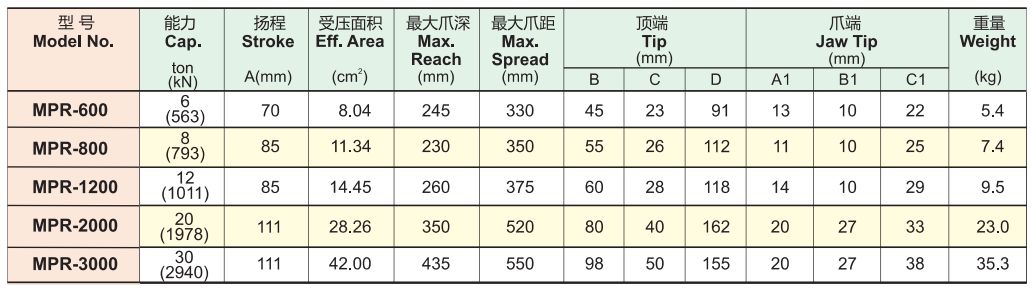

2. Table parameters

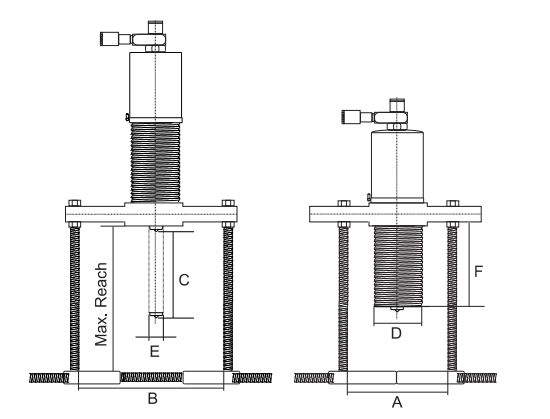

3. Drawing parameters
