HTA Series Hydraulic Bolt Tensioner

1. Product Features

      *Suitable for stretching single specification bolts with high accuracy

      *Gravity recovery, simple structure, low cost, and convenient operation

      *Compact structure, light weight, and high tensile force

      *Output 179-4476KN, suitable for bolts M16-M100

      *Maximum working pressure 1000-1500Bar

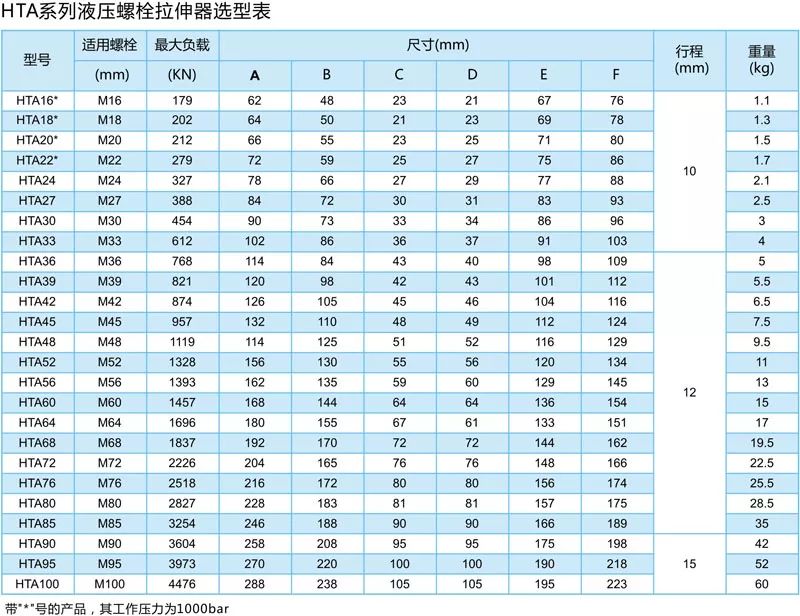

    2. Table parameters

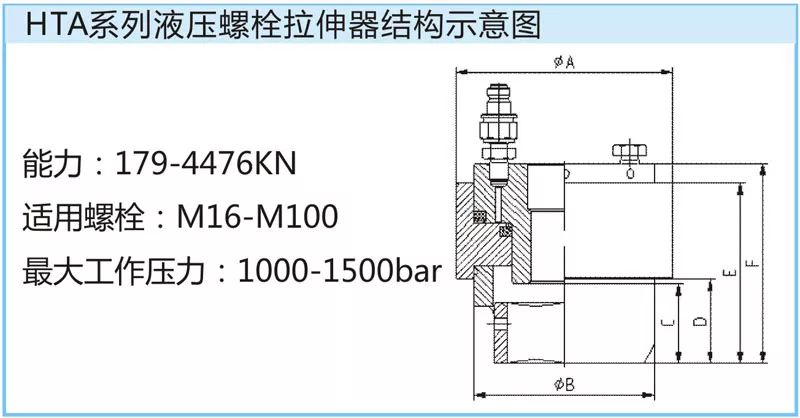

3. Drawing parameters
