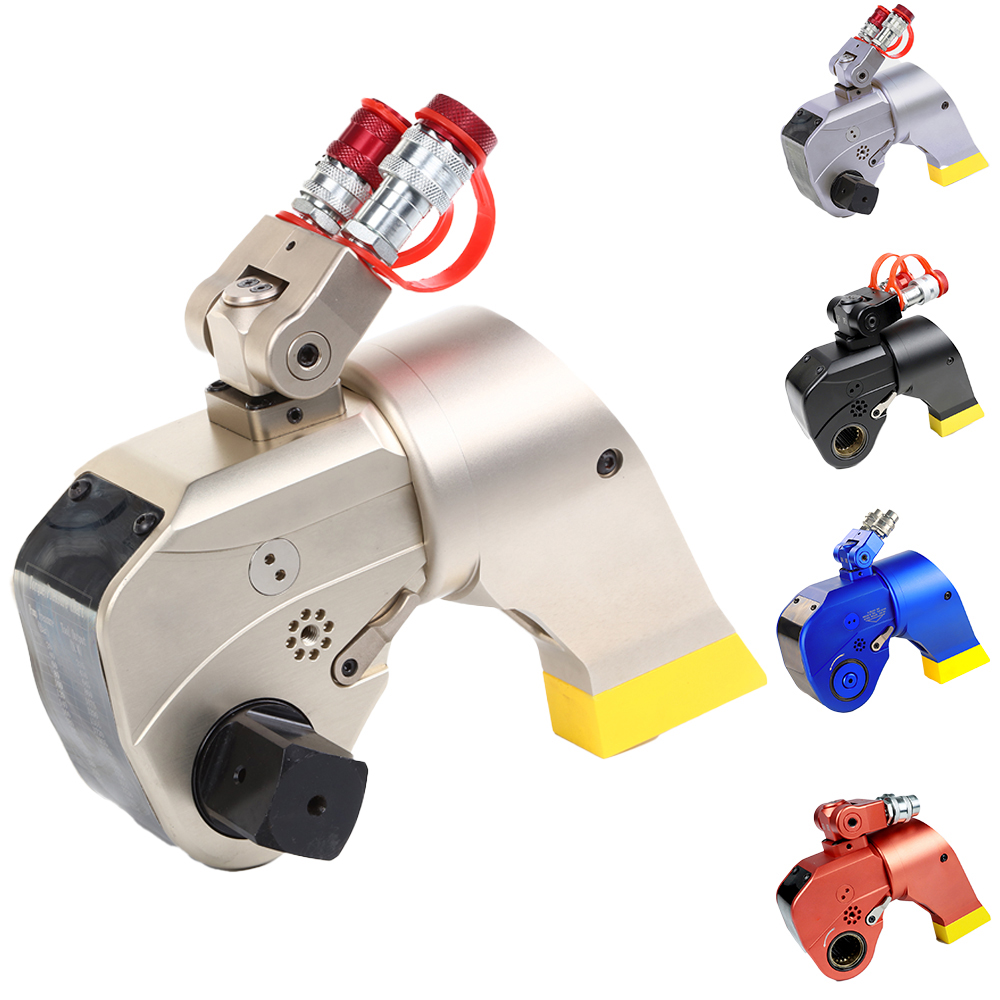

MDW Serial Square Drive Hydraulic Torque Wrench

Light weight and high strength, the Bolting System MDW series tool features superior torsional strength, fast operation cycle, fine tooth pawl and floating piston design.

Tel:0571-88841109



•      Max. working pressure 700bar

•      360° rotating reaction arm.

•      Snap-on reaction arm, easy to replace.

•      360*180° universal rotation of oil inlet and outlet ports.

•      Push-button drive shaft, easy to replace.

•      One-way ratchet prevents reverse rotation, rebound shock absorbers

•      Aviation materials aluminum-titanium alloy and high-strength alloy steel body.

•      Anti-Lock Switch

•      Annti-Corrosion & anti-rust treatment

•      Overpressure release safety device

•      Output Accuracy : ±3%, Repeatability : 100%
